Industrial Transformers

• Capacity
• 5 kVA to 500 kVA (custom built)

• Coil Material
• Other , High grade copper

• Coil Number
• Other, 2 to 4 (customizable)

• Coil Structure
• Other, Toroidal / Layer Wound

• Cooling Type
• Air / Oil Cooled

• Dimension (L*W*H)
• Custom as per design

• Efficiency
• >98%

• Frequency (MHz)
• 50/60

• High Voltage
• Upto 11kV

• Load Loss
• <1.5% at rated output

• Low Voltage
• 110V / 230V or as specified

• Material
• Copper and silicon steel core

• Operating Temperature
• -25C to +60C

• Output
• 12V, 24V, 48V, or as per requirements

• Phase
• Other, Single Phase or Three Phase

• Power Scope
• Upto 500 kVA (customizable)

• Product Type
• Other, Custom Transformer

• Rated Voltage
• 230V / 415V primary

• Standard
• IS 2026 / IEC 60076

• Usage
• Industrial and commercial electrical applications

• Voltage Booster Type
• Other, Step Up and Step Down

• Weight
• Variable (15 kg to 120 kg based on rating)

• Capacity
• Customized (up to 5000 kVA)

• Coil Material
• Other , Electrolytic Grade Copper/Aluminium

• Coil Number
• Other, Multiple

• Coil Structure
• Other, Layer Wound

• Cooling Type
• ONAN/OFAF

• Dimension (L*W*H)
• As per Rating/Design

• Efficiency
• 98%

• Frequency (MHz)
• 50 Hz (0.05 MHz)

• High Voltage
• Upto 33 kV

• Load Loss
• Meets IS/IEC Standards

• Low Voltage
• 0.415 kV, 0.690 kV, Customizable

• Material
• Copper, Silicon Steel Core, High Grade Insulating Material

• Operating Temperature
• -20C to +55C

• Output
• Custom Output as per Requirement

• Phase
• Three Phase

• Power Scope
• Upto 5000 kVA

• Product Type

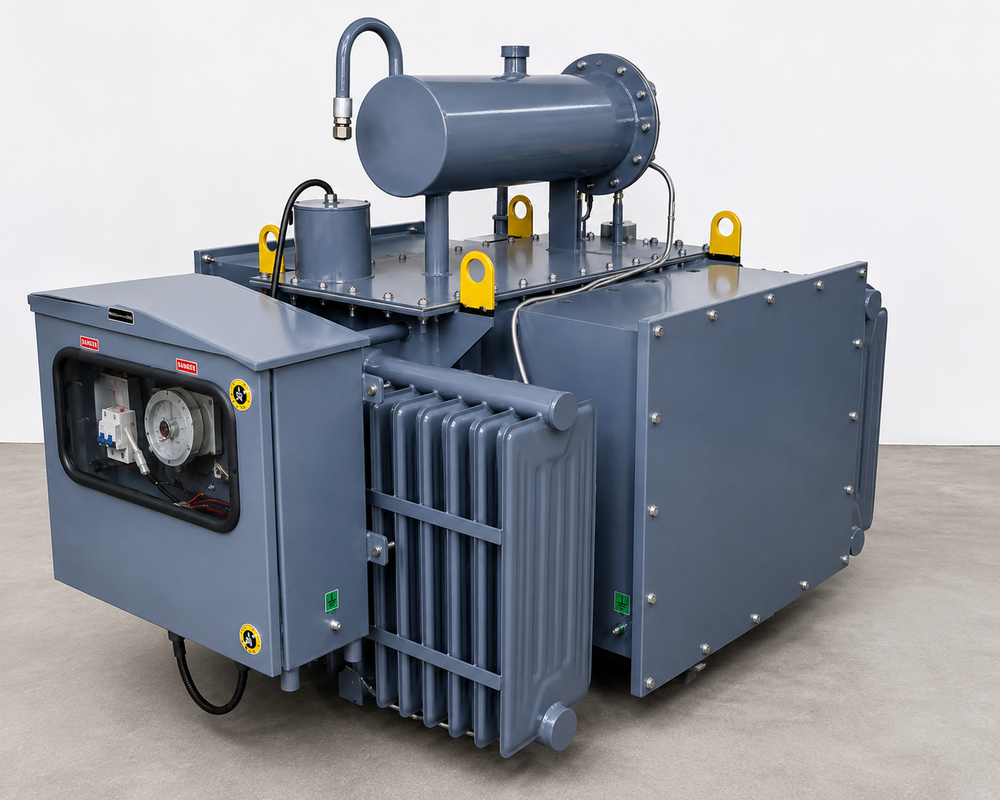

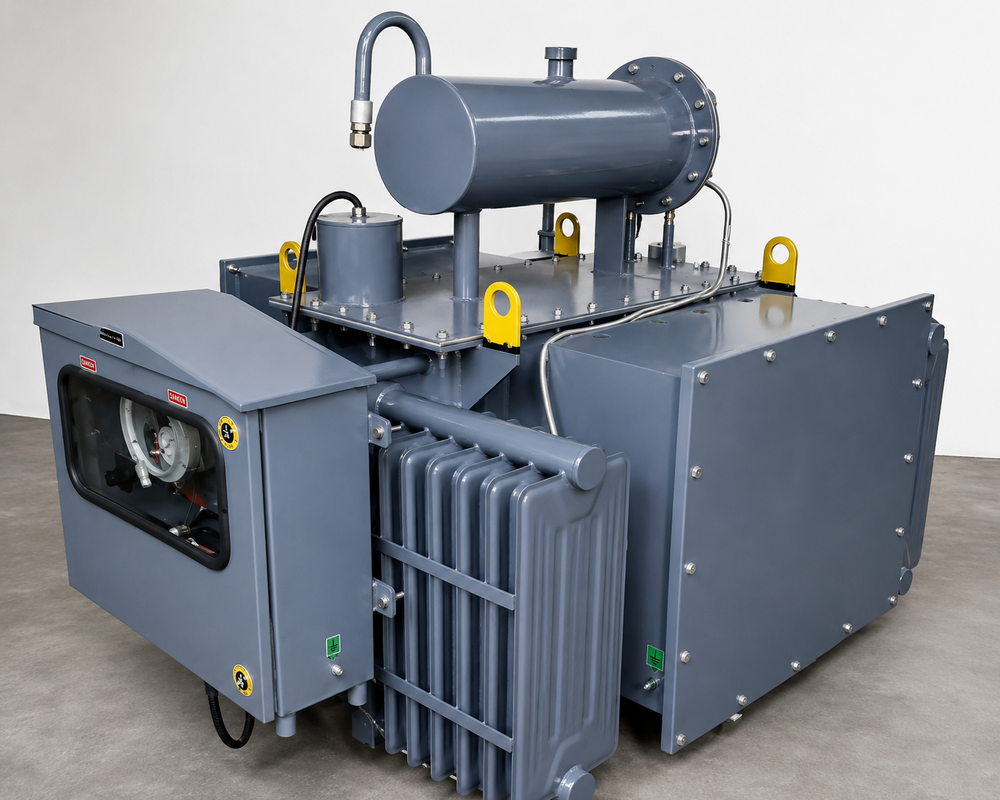

• Other, Special Purpose Transformer

• Rated Voltage
• Up to 33 kV

• Standard
• IS 2026, IEC 60076

• Usage
• Industrial, Distribution, Power Transmission, Voltage Regulation

• Voltage Booster Type
• Other, Available as Per Requirement

• Weight
• As per Design (Customizable)

• Capacity
• Customizable (Standard: 100 kVA - 5000 kVA)

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, Multiple Coils

• Coil Structure
• Other, Layer Wound / Disc Wound

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• As Per Design Specification

• Efficiency
• High Efficiency

• Frequency (MHz)
• 50 Hz

• High Voltage
• Up to 33,000 V

• Load Loss
• Low Load Loss

• Low Voltage
• 415 V / 433 V / 690 V

• Material
• High Grade Steel and Copper

• Operating Temperature
• -25C to 55C

• Output
• Stable Voltage Output

• Phase
• Three Phase

• Power Scope
• Up to 5000 kVA

• Product Type
• Other, Two-In-One System

• Rated Voltage
• 11 kV / 22 kV / 33 kV

• Standard
• IS 2026 / IEC 60076

• Usage
• Industrial, Transformer System Application

• Voltage Booster Type
• Other, Integrated Booster

• Weight
• Custom As Per Design
